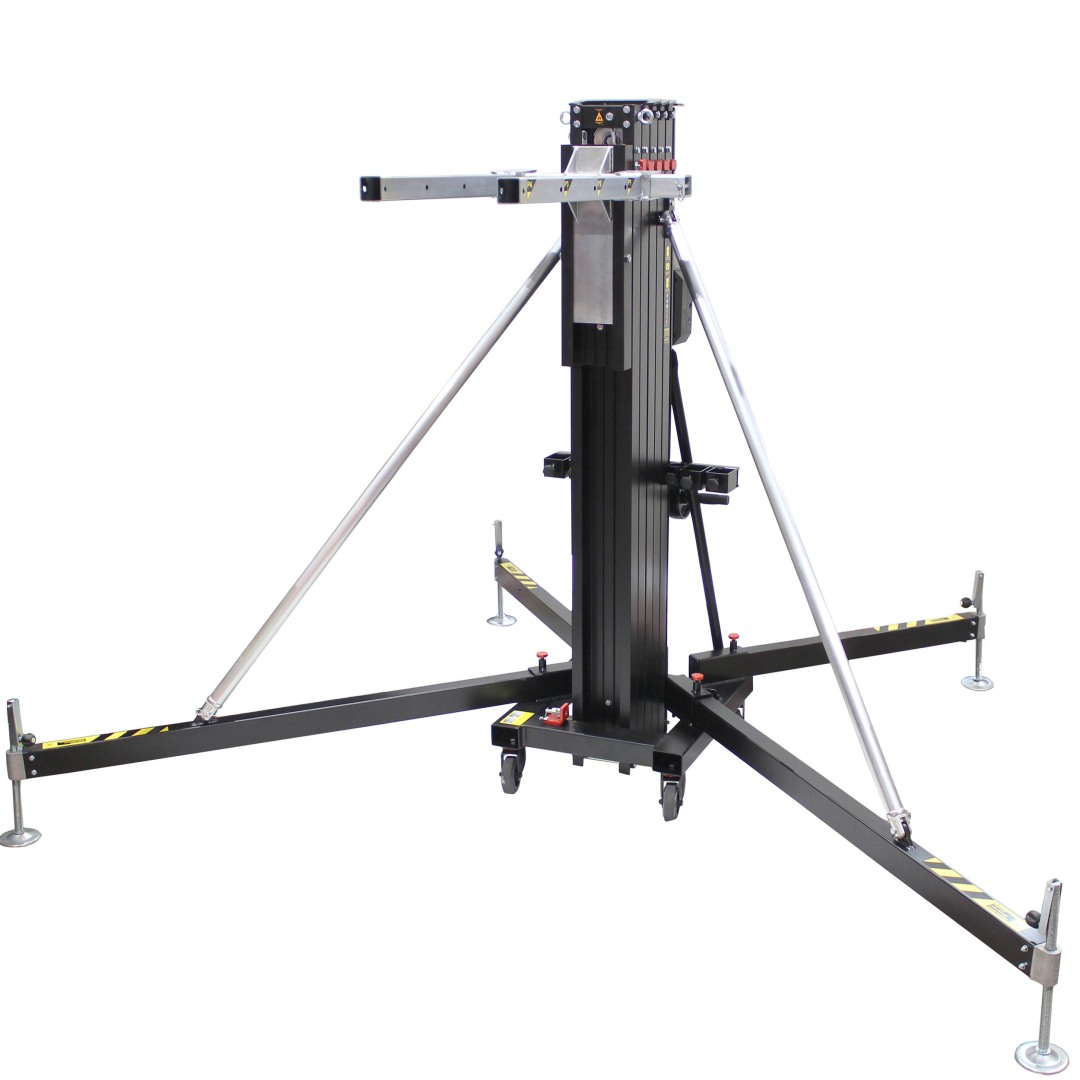

XTF-FT6033 Front Loading Lifting Tower

Roll over or click to zoom in

PROX

See more from PROX

Model: XTF-FT6033

List $8,999.99

Log in to order this item

Multipurpose Compact Front Loading Lifting Tower - 728 lb Capacity - Max Height 19.52ft | From Spain

Description
The ProX XTF-FT6033 FANTEK® Lifting Tower is Front Loading and allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 330 kg (727.5 lbs) to a maximum height of 5.95 meters / 19.52 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XTF-FT6033 Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental, and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.). This Compact model is only 5.64ft (1.72 m) folded in height.

During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope. Additionally, the DYNSYS® is a system designed to guarantee the “health” and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process. The WIREDRIVE® is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling. Always secure loads at a locking point and never on the winch alone!

Features

• Design to fly line array systems, trussing, and LED screens
• Made of quality components to ensure maximum safety
• Raise the load from the floor.
• CE - DGUV V17/18 Certified Compliant
• XT-FT6033 is Made by Fantek® in Valencia Spain.
 • Minimum Height - 1.72 meters / 5.64 Feet
• Max Height - 5.95 meters / 19.52 Feet
• Max Load - 330 kg / 727.5 lbs
• Winch - 900 kg / 1984.16 lbs
• Steel Loading Forks - 600 mm / 23.62 Inches
