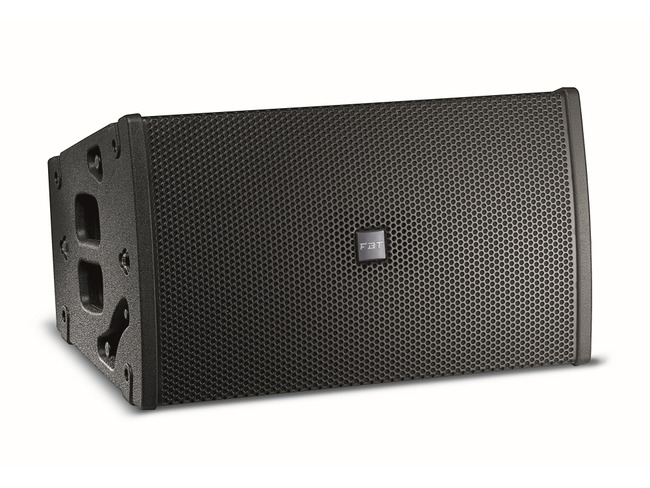

Vertical Horizontal Active Array - 4x6,5" + 1,4" - 800Wrms+400Wrms

Roll over or click to zoom in

VHA-406-ND Vertical Horizontal Active Array - 4x6,5" + 1,4" - 800Wrms+400Wrms - Dante and Infinito

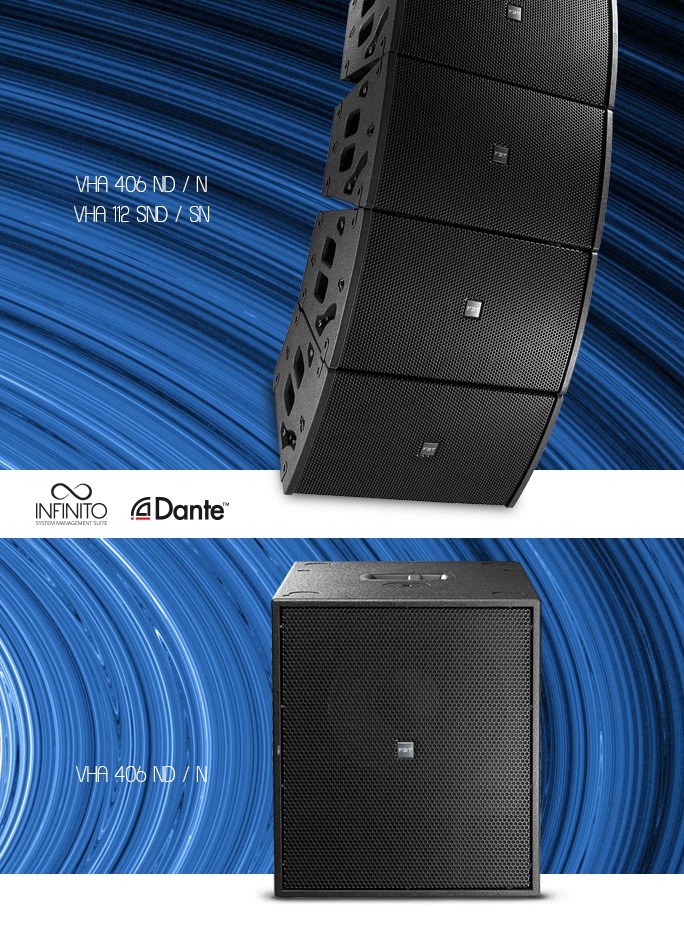

Crafted in Italy with the no-compromises manufacturing excellence for which FBT is known, the HORIZON VHA series comprises the full range VHA 406 ND, plus two options for low-end extension in the shape of the 12” (VHA 112 SND) and 18” (VHA 118 SND).

24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software.

The module is contained in an aluminum chassis with intelligent forced ventilation and is equipped with an OLED display with an encoder for parameter setting and a high-brightness blue front LED that allows remote identification of the device, also in daylight. Fully developed in-house by the FBT R&D team, INFINITO is the revolution that enhances the user experience, reaching new heights in terms of performance and simplicity.

Features

• Configuration: 2 Way
• Frequency response: 65Hz - 20kHz -6dB
• Low frequency woofer: 4x 6.5" (1.5" VC)
• High frequency driver: 1x 1.4" (2.5" VC)
• Maximum SPL cont/peak: 128/133dB
• Dispersion: 90 x 20 (H x V)
• Input impedance: 22kOhm
• Crossover frequency: 1.2kHz
• Input connector: XLR with link out
 • Net Dimension (WxHxD): 612 x 360 x 397mm
• Net Weight: 29kg
• Transport Dimension (WxHxD): 695 x 440 x 475mm
• Transport Weight: 33kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 800/400w
• Built-in amplifier peak LF/HF: 1600/800w
• Power cord: 5m
