VHA-406-A Vertical/Horizontal Active Array 4x6,5" + 1,4" 600Wrms+300W

VHA-406-A Vertical Horizontal Active Array 4x6,5" + 1,4" 600Wrms+300W

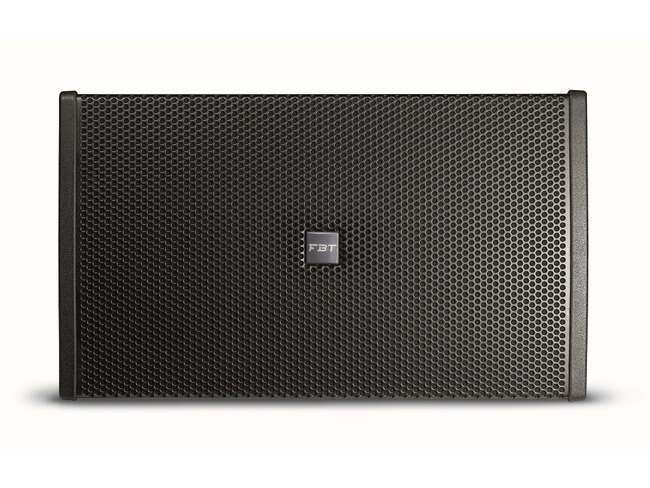

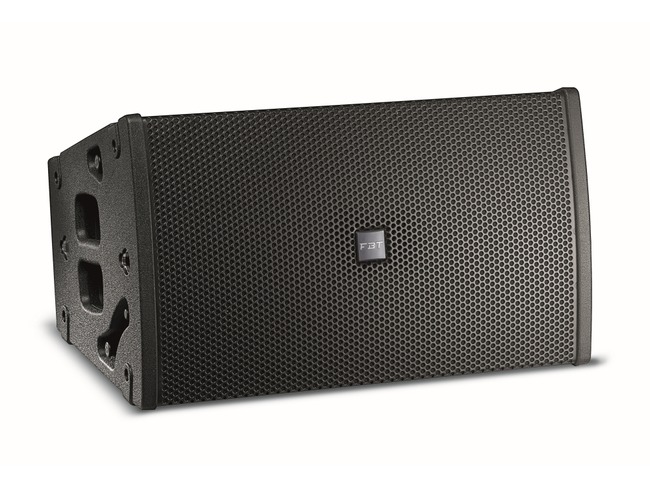

The VHA406A is made from birch plywood with a tough and tour-ready synthetic rubber surround, four 6.5-inch woofers plus a 1.4" compression driver on a waveguide. 90 degrees x 20 degrees dispersion, Class-D amplifier delivers 600W for the LF section and 300W for the HF. Vertical or Horizontal configuration.

Bi-amplified 2-way line array
4 x 165mm (6.5 ") custom woofers with 38mm (1.5") coil
Neodymium B&C compression HF driver with 36mm (1.4") spout and 64mm (2.5") coil
Large format FBT waveguide with 90° (H) x 20° (V) dispersion
Frequency response from 65Hz to 20KHz
Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
DSP processor with 8 equalization presets

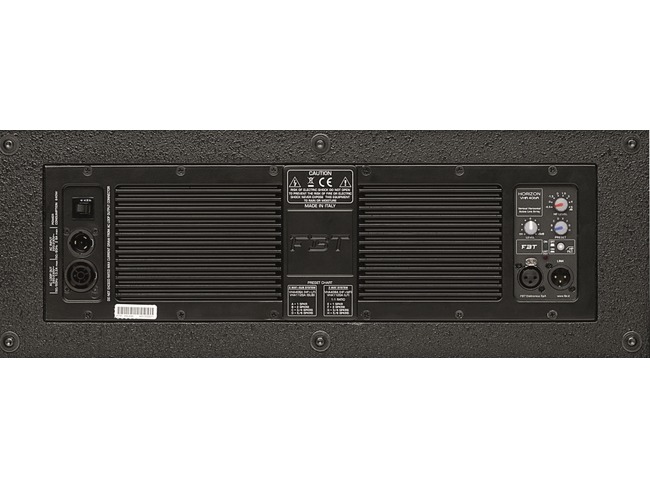

Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
Neutrik PowerCON TRUE1 IN and LINK power connectors

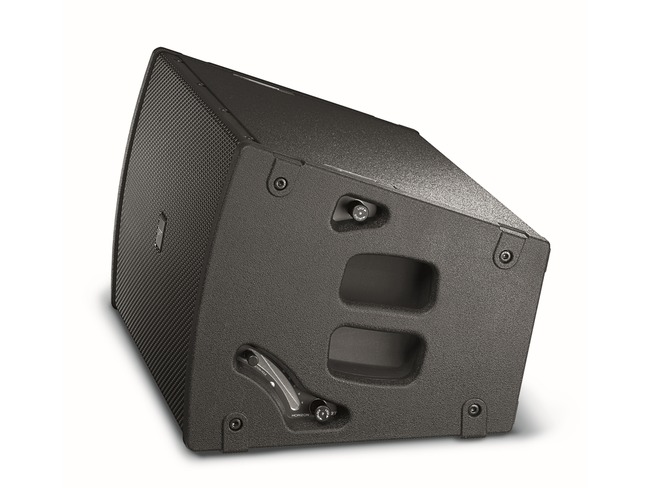

Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.

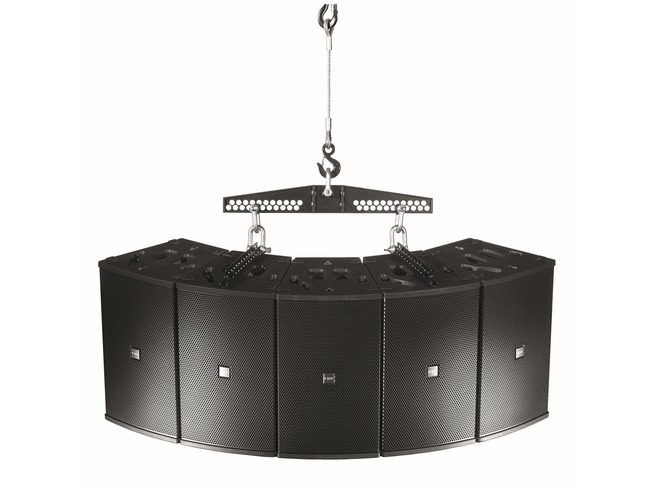

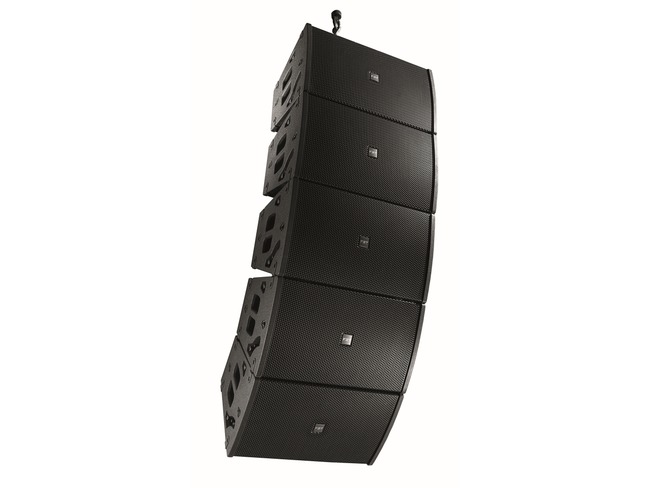

Side suspension hardware with integrated setting pins, inclination between adjacent cabinets from 5° to 20° in 5° steps. Possibility of vertical and horizontal installation through dedicated fly bars.

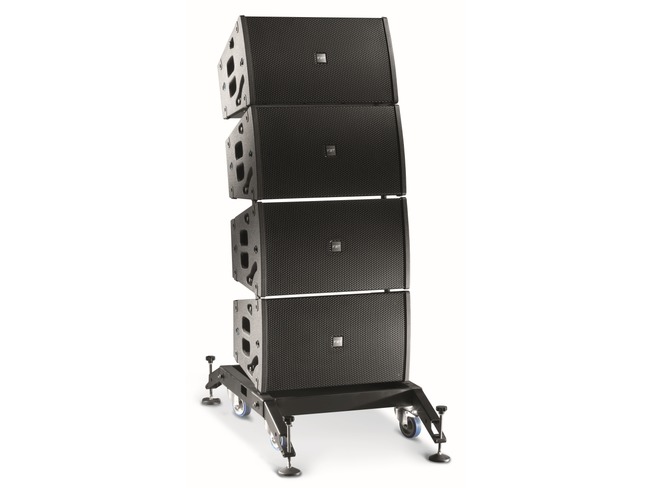

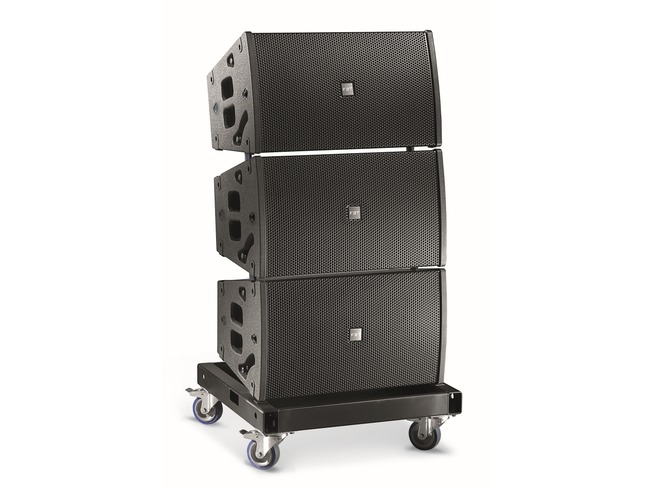

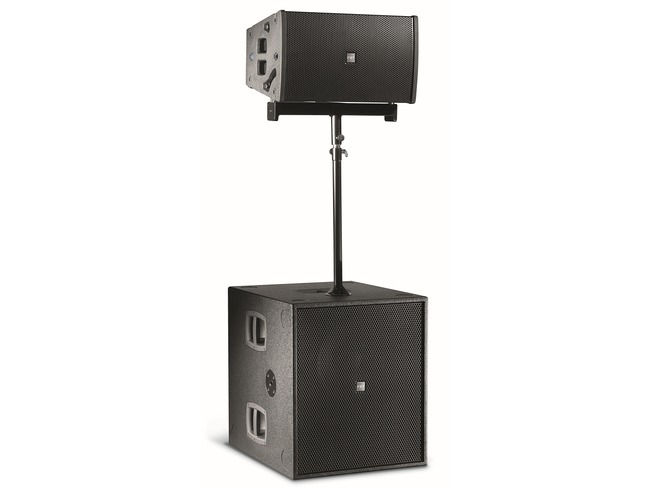

Wide range of accessories for suspension, pole-mounting, or ground-stacking.

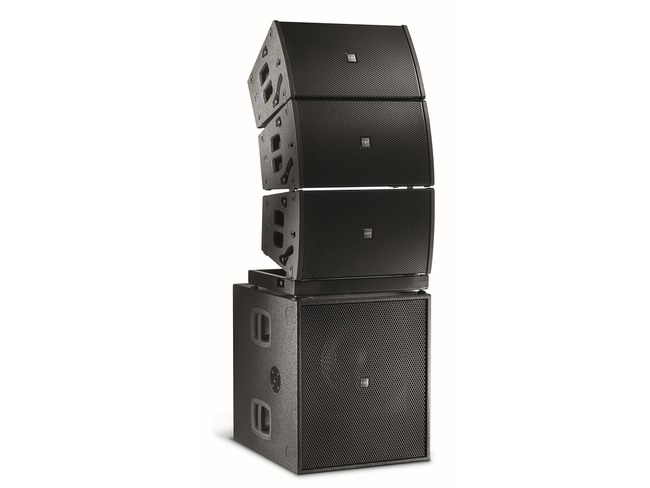

Ideal for both live applications, assisted by one or both subs of the VHA range, and for fixed installations

Features

• Configuration: 2 Way • Frequency response: 65Hz - 20kHz -6dB • Low frequency woofer: 4x 6.5" (1.5" VC) • High frequency driver: 1x 1.4" (2.5" VC) • Maximum SPL cont/peak: 128/133dB • Dispersion: 90 x 20 (H x V) • Input impedance: 22kOhm • Crossover frequency: 1.2kHz • Input connector: XLR with link out

• Net Dimension (WxHxD): 612 x 360 x 397mm • Net Weight: 29kg • Transport Dimension (WxHxD): 695 x 440 x 475mm • Transport Weight: 33kg • AC Power requirements: 640VA • Built-in amplifier LF/HF: 600/300w • Built-in amplifier peak LF/HF: 1200/600w • Power cord: 5m
