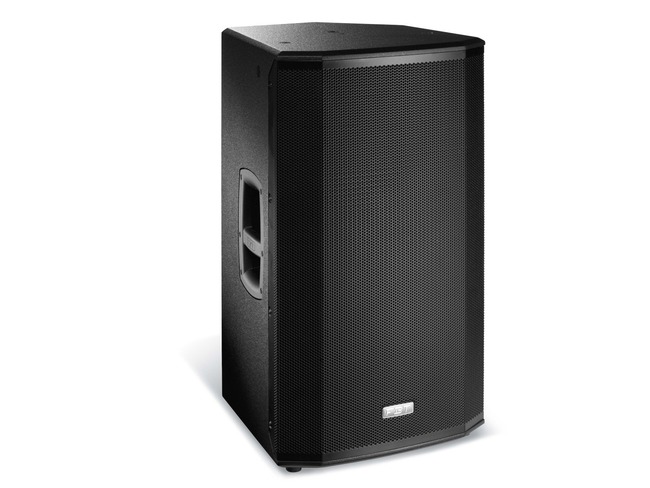

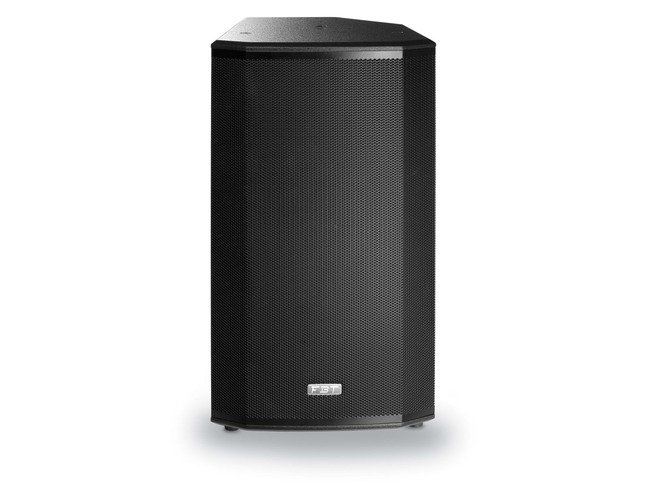

VENTIS-115A 15" 2-way Active speaker- 15" + 1" w/DSP and Delay.

Roll over or click to zoom in

See more from FBT

Model: VENTIS115A

List

$2,370.00

To order this item, you need to apply!

VENTIS-115A 15" 2-way Active speaker - 15" + 1" 700w + 200w w/DSP and Delay. 133DB SPL

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximize speech intelligibility
DJ is Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasize full-bodied, low-mid frequencies.

2-way, bi-amplified, bass-reflex design
Bi-amped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing
High-efficiency switch mode power supply

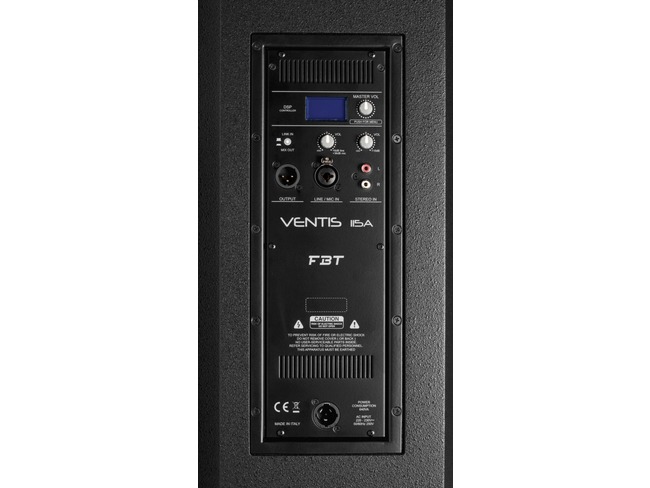

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
380mm (15") LF woofer with 64mm (2.5") voice coil, custom made for FBT
25mm (1") exit throat B&C HF compression driver with 44mm (1.7") voice coil
Frequency response from 42Hz to 20KHz
80°H x 50°V Constant Directivity rotatable Horn
6 x M10 suspension points, wall bracket mount thread, 35 mm (1 3/8") top-hat speaker stand socket, two aluminum handles
45° monitor taper
Adjustable delay between 0 - 10m
Weight: 25Kg
Dimensions : 427 x 765 x 420mm

Features

• Configuration: 2 Way
• Frequency response: 42Hz - 20kHz -6dB
• Low frequency woofer: 15
• High frequency driver: 1
• Input impedance: 22kOhm
• Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
• Net Dimension (WxHxD): 427 x 765 x 420mm
• Net Weight: 25kg

• Transport Dimension (WxHxD): 600 x 865 x 520mm
• Transport Weight: 29kg
• AC Power requirements: 640VA
• Power cord: 5m
• Built in amplifier: 900w (700w LF + 200w HF)
• Built in amplifier peak: 1800w (1400w LF + 400w HF)
• Maximum SPL continuous/peak: 127/133dB
• Dispersion (HxV): 80 x 50 rotatable
