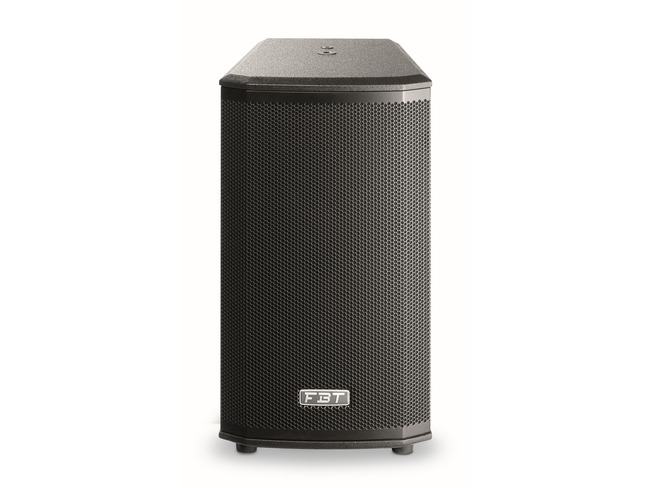

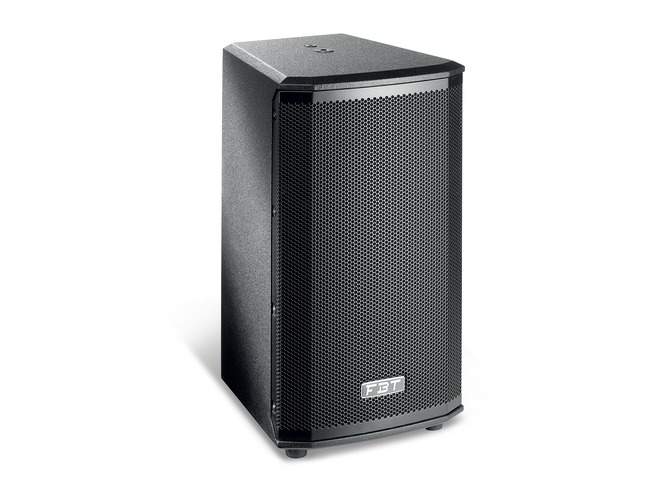

VENTIS 108A 2-way Active speaker- 8" + 1"

2-way Active speaker- 8" + 1" - 700Wrms (class D)+200Wrms (Class AB) w/DSP and Delay.

Ventis 108A is part of the Ventis range which is ideal for portable performance or fixed installation. This Active speaker includes an 8" woofer and a 1" exit 1.4"VC compression driver.The built-in DSP LCD screened Amp module is 700W + 200W Delivering 131dB SPL. Features a 15mm Baltic birch ply cabinet with a 35mm pole mount and a full-length grille. optional brackets for installation are available.

The 108A includes a 200mm (8") woofer and 50mm (2") voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximize speech intelligibility
DJ is Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasize full-bodied, low-mid frequencies.

Features

• Bi-amped • Speaker configuration: 8" Woofer and 1" tweeter • Power: 700 W Class D (LF) and 200 W Class H (HF) • DSP with 6 presets and 2 freely configurable memory locations • Housing material: 15 mm Birch plywood • Beam angle (nominal): 80° x 50° (H x V, rotatable)

• Frequency range: 65 - 20,000 kHz (-6 dB) • Maximum SPL: 131 dB • Inputs: XLR / jack combo socket and RCA ("Cinch" stereo) • Link output: XLR male • Dimensions (W x H x D): 274 x 500 x 300 mm • Weight: 13.3 kg

Details

Configuration: 2 Way
Frequency response: 65Hz - 20kHz
Low frequency woofer: 8"
High frequency driver: 1"
Maximum SPL cont/peak: 123/131dB
Dispersion: 80 x 50 Rotatable
Input impedance: 22kOhm
Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD): 274 x 500 x 300mm
Net Weight: 13.3kg
Transport Dimension (WxHxD): 530 x 547 x 580mm
Transport Weight: 27kg
AC Power requirements: 640VA
Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
Power cord: 5m PowerCON True1
