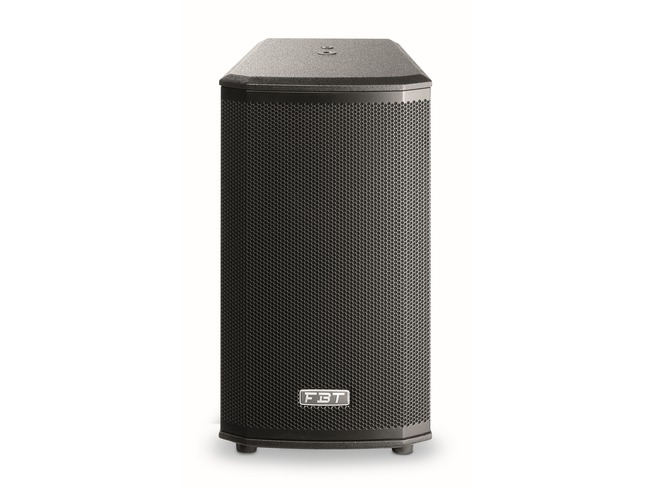

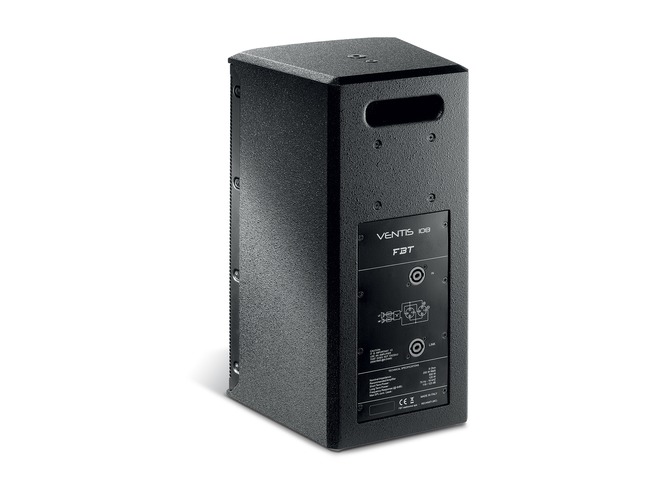

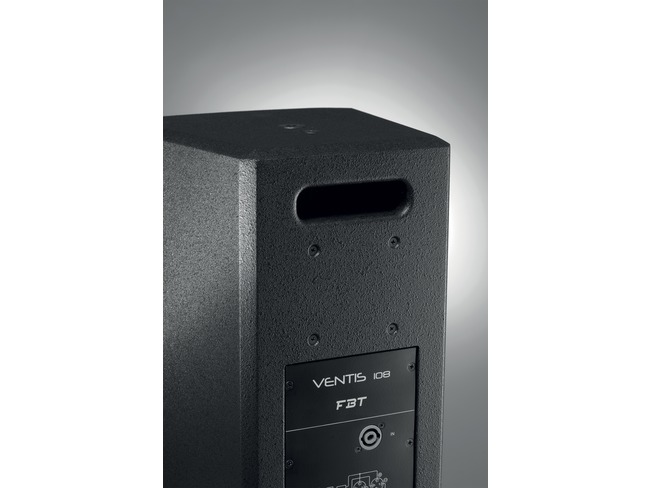

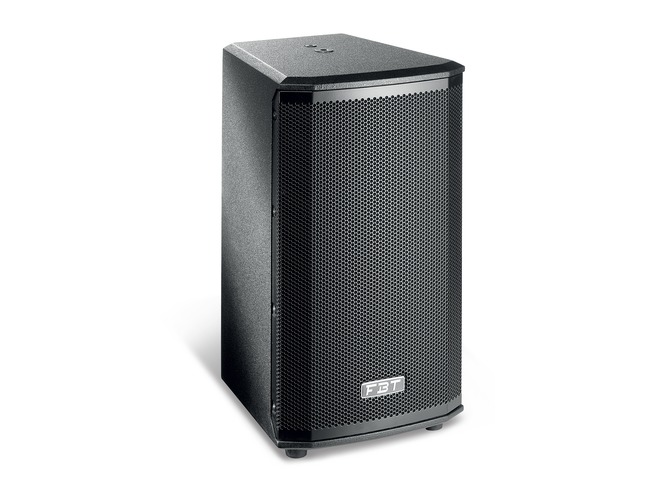

VENTIS-108 2-way Passive speaker - 8" + 1"

VENTIS-108 2-way Passive speaker - 8" + 1" - 250Wrms

Ventis 108 is part of the Ventis range which is ideal for portable performance or fixed installation. This Passive speaker Features an 8" woofer and a 1" exit 1.4"VC compression driver. The recommended amplifier of 250 Watts at 8 Ohm will deliver 126dB SPL. Connections via 2x Speakon NL4 In + Thru. All are housed in a 15mm Baltic birch ply cabinet with a 35mm pole mount and a full-length grille. Optional brackets for installation are available.

Features

• KEY FEATURES • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver • Speakon NL-4 IN and LINK OUT connectors • 4 x M5 threaded rigging points and optional mounting hardware • Configuration: 2 way • Recommended amplifier: 250 W RMS • Long Term power: 125 W • Short term power: 500 W • Nominal impedance: 8 ohm • Frequency response: 70Hz - 18KHz -6dB • Low Frequency woofer: 8 - 2 coil inch • High frequency driver: 1 - 1.4 coil inch

• Sensitivity (@1W/1m): 95 dB • Maximum SPL cont/peak: 120/126 dB • Dispersion: 80°x50° rotatable HxV • Crossover Frequency: 1.8 kHz • Recommended HP filter: 50Hz - 12-24db/oct • Recommended external filter: FBT DLM 26 • Input connector: 2 x SPEAKON • Net Dimension (WxHxD): 274x500x300 / 10.8x19.7x11.8 mm/inch • Net Weight: 12.3 / 27.1 kg/lb • Transport Dimension (WxHxD): 395x620x375 / 15.5x24.4x14.7 mm/inch • Transport Weight: 14.3/31.5 kg/lb
