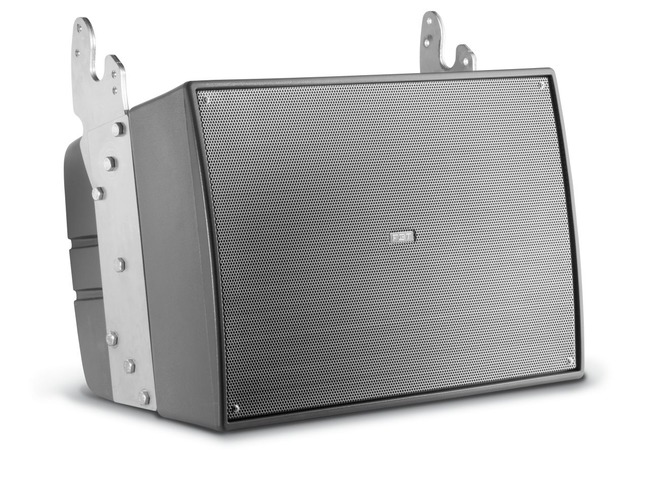

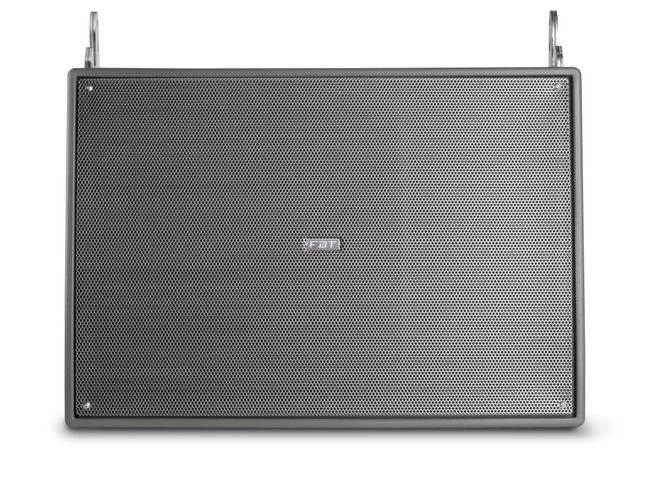

SHADOW-142L 2-way all-weather line array, 14" & 2 - 1.4"

SHADOW-142L 2-way all-weather line array, 14" & 2 - 1.4"

The Shadow 142L is a flyable passive line array system. Recommended amplifier 1000W / 8ohm will deliver 137dB SPL. Ideal in both indoor and outdoor venues because of its IP55 weather-resistant rating. 1x 14" woofer and 2 x 1.4" HF drivers deliver 100H x 15V degree dispersion.

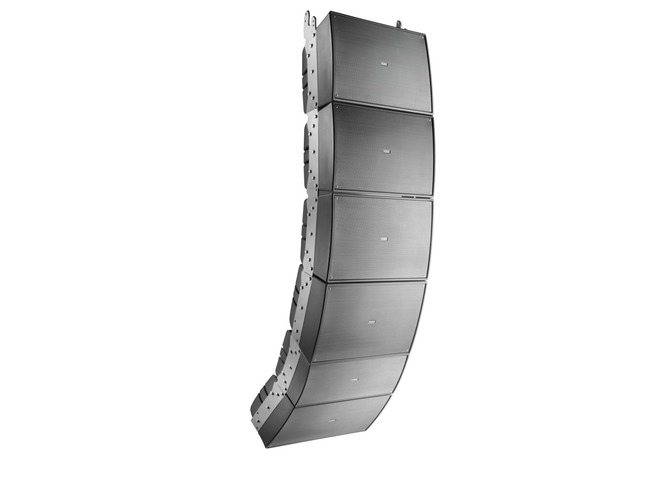

SHADOW 142L is a weatherproof full range, two-way loudspeaker system offering high performance and efficiency for a wide range of professional indoor or outdoor applications. This horn-loaded design with its smooth frequency response and very high-efficiency product ensures excellent quality music reproduction and clear intelligible speech. Line Array configuration makes SHADOW 142L perfect for convention centers, stadiums, arenas, and many other indoor or outdoor installations, where long throw full-range sound reproduction is required.

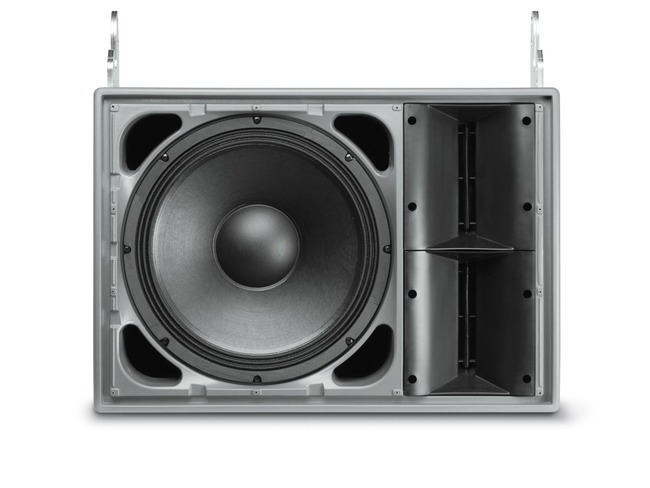

14” woofer with a 3” coil.
HF section is a constant directivity horn loaded to a 2×1.4” driver with a 2.5” coil for smooth, wide dispersion.
Sturdy molded polyethylene curved enclosure, full UV protection.

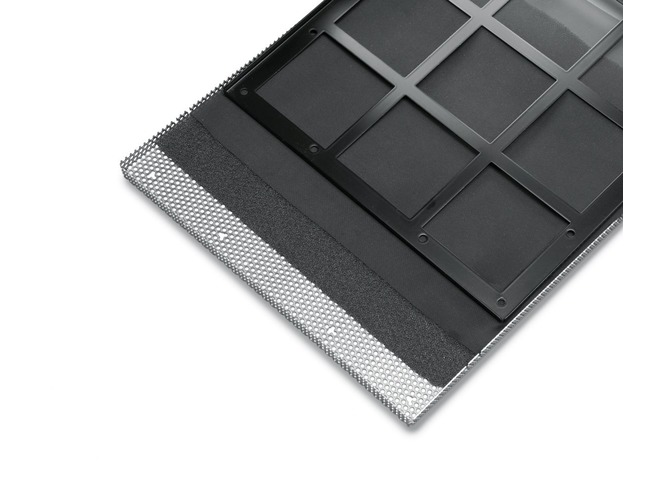

Water-stop grill with 3 layers of protection.
IP55 weather-resistant.
100° x 15° coverage.
7.5° or 15° adjustable angle.
Standard grey finishes.

Features

• Configuration: 2 Way • Frequency response: 60hz - 20 kHz • Low frequency woofer: 14 • High frequency driver: 2x 1.4 • Maximum SPL cont/peak: 126.5 / 137db • Dispersion: 100 x 15 (H x V) • Input impedance: 8 Ohm (8/8 Optional)

• Crossover frequency: 1.2kHz (Opti Bi-amp) • Input connector: 2x Amphenol LTW 4 Pole • Net Dimension (WxHxD): 615 x 430 x 514mm • Net Weight: 38kg • Transport Dimension (WxHxD): 715 x 530 x 515mm • Transport Weight: 40kg
