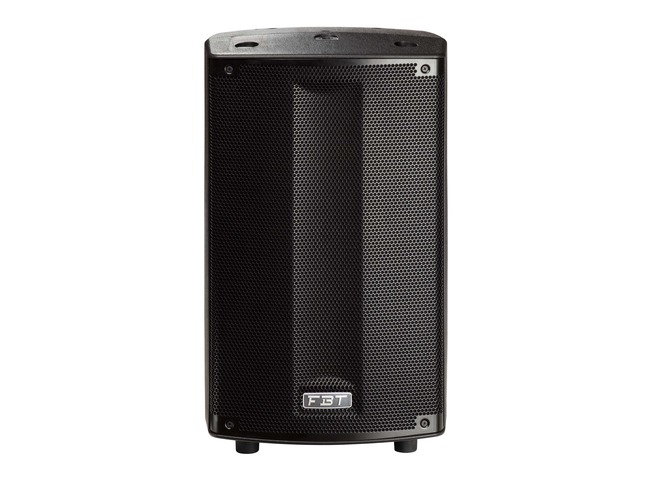

PROMAXX110A 2-way Active Speaker w/10" & 1" (composite enclosure)

Roll over or click to zoom in

See more from FBT

Model: PROMAXX110A

List

$1,545.00

To order this item, you need to apply!

PROMAXX110A Active 2 way composite enclosure with 10" & 1". 700w (class D) & 200w (AB)

The ProMax110a is an active speaker equipped with a 10' custom FBT speaker complete with a 1" B&Cs compression driver 900w RMS HF - 90°H x 60°V dispersion - Designed, Engineered, and Manufactured in Italy.

2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display

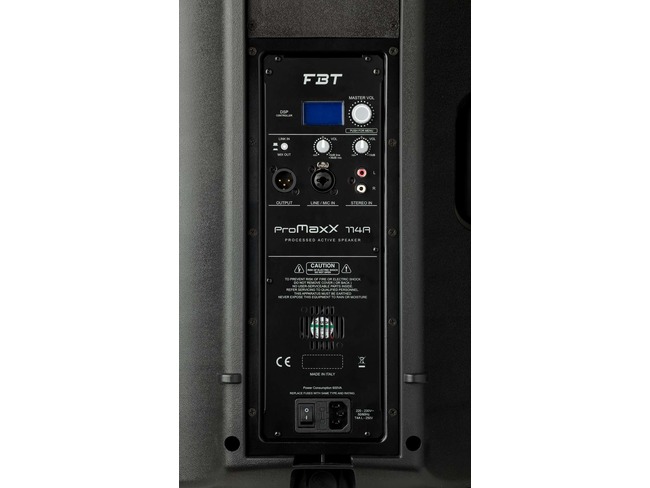

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

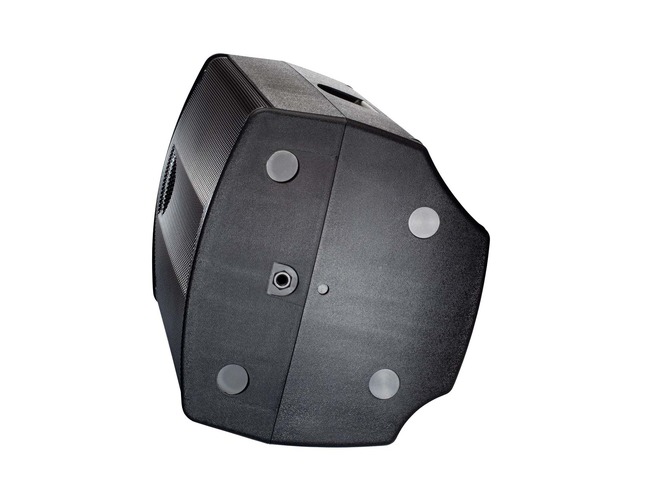

2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
250mm (10") LF woofer with 50mm (2") voice coil, custom made for FBT
25mm (1") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
Frequency response from 58Hz to 20KHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 10.3kg/22.70lb

Features

• Configuration: 2 Way
• Frequency response: 58Hz - 20kHz -6dB
• Low frequency woofer: 10
• High frequency driver: 1
• Maximum SPL cont/peak: 124/131dB
• Dispersion: 58Hz - 20kHz -6dB
• Input impedance: 22kOhm
• Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
• Net Dimension (WxHxD): 320 x 550 x 275mm
• Net Weight: 10.3kg

• Transport Dimension (WxHxD): 400 x 630 x 360mm
• Transport Weight: 12.8kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
• Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
• Power cord: 5m
• Built in amplifier: 900w (700w LF + 200w HF)
• Built in amplifier peak: 1800w (1400w LF + 400w HF)
• Maximum SPL continuous/peak: 124/131dB
• Dispersion (HxV): 90 x 60
