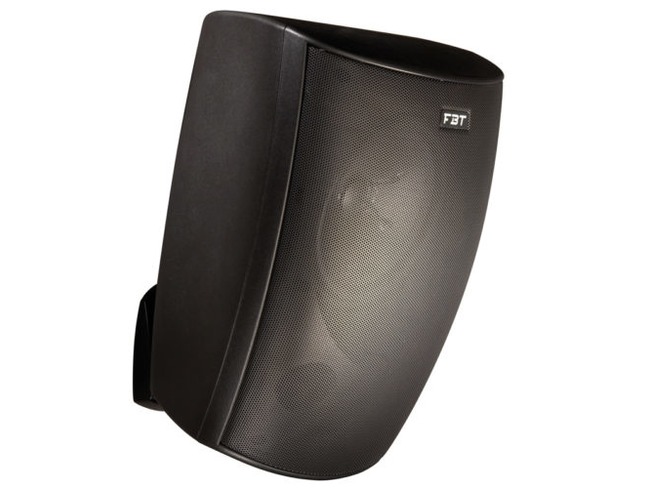

PROJECT-320-BT-AN 2-Way Passive Speaker 3.5" + 0.5"

Roll over or click to zoom in

PROJECT-320-BT-AN 2-Way Passive Speaker 3.5" + 0.5" - 40Wrms - 100V/70V Line Transfer

PROJECT 320 3.5" Woofer and 0.5" Tweeter passive installation speakers feature a fully adjustable support bracket for easy installation. Connection is via a Euroblock connector - 8 Ohm 8 ohm and 100V line - Recommenced Amplifier: 40W RMS Long Term Power: 15w Short Term Power: 60w - 100V Transformer: 4, 8, 15, 20W tappings Sensitivity (1W/1m): 87dB

Available in Black or White

Recommended Amplifier: 40W RMS
Long Term Power: 20W
Short Term Power: 80W
Transformer: 4, 8, 15, 20W
Sensitivity (1W, 1m): 87dB
Recommended HP Filter: 70Hz - 24dB Oct

PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterizes a completely new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high-quality sound throughout. The PROJECT range utilizes a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction, and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable. Connection to the loudspeakers is via plug-in “Euroblock” connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

Features

• • Bracket included
• • 2 way bass reflex
• • 3.5” woofer and 0.5” tweeter
• • 100V line transformer (Multi Tapp)
• • Frequency response @-10dB is 100Hz-15kHz
• • Dispersion HxV 120°x120°
 • • High-pass filter recommended 70Hz-24dB/oct
• • 8-piece multiple packing
• • 20W/40W nominal/maximum power
• • Setting 4/8/15/20W/8ohm
• • Sensitivity 87dB
• • Max SPL 103Db
