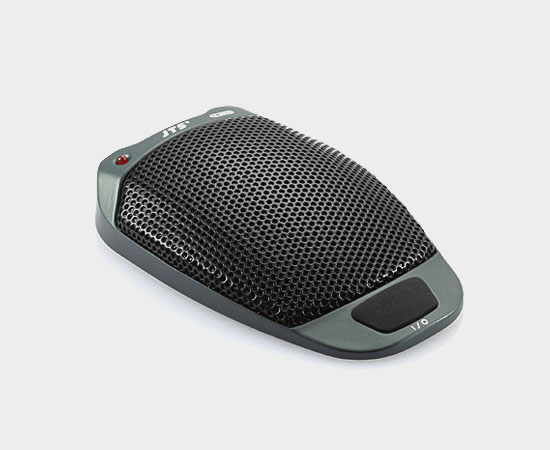

CM-602 Surface Mount Boundary Microphone

Roll over or click to zoom in

See more from JTS

Model: CM-602

UPC: 4712832616392

List

$125.00

To order this item, you need to apply!

CM-602 Surface Mount Boundary Microphone

The CM-602 is a simplified version of CM-601 with ON/OFF switch only.

A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone
Robust and shock-absorbing body
Elastic cartridge suspension for preventing structure-borne noise and impact sound
With 8 m cable mini XLR jack to XLR plug
With performed outline at the bottom for possible wall mounting

Features

• Type Electret Condenser
• Frequency Response 30~12,000 Hz
• Sensitivity (at 1,000Hz) -53±3 dB* (2.23mV) 0dB=1V /μbar
• Directional Pattern Half-Cardioid
• Impedance 100Ω
• Max. SPL for 1% THD 125 dB
• Signal-To-Noise Ratio 67dB

• Power Supply 12-52 VDC phantom power
• Current Consumption ≤6mA
• Output Connector 3P Mini XLR-M type(power module)
• Net Weight 88 grams
• CM-601 Only 0
• Low Frequency Roll-off 80Hz , 120Hz
• Switches Push control: on/off
